Saffron Steel & Engineering. is one of the leading manufacturers, supplier, distributor, and exporter of Alloy 20 products. We fabricate different products from Alloy 20 like Pipes and Forges Fittings. We produce clients give these products as per the requirements from various fields. Alloy 20 Forged Fittings are suitable for industrial use, and these Fittings are continuously on demand. Because of its qualities and features, this Alloy 20 Forged Fittings are widely used in industries.
Alloy 20 includes different metals such as nickel, iron, and chromium. It has excellent resistance in an acid condition, and hence it is suitable in different environmental conditions. Alloy 20 is also ideal in high-temperature applications. We are supplying our high-grade Alloy 20 Forged Fittings for the applications such as pump parts, valve parts, mixing tanks, fasteners, storage tanks, food processing equipment, agitators, and fittings.
Saffron Steel & Engineering. carries a wide range of Alloy 20 forged fittings in a variety of lengths, ODs, IDs, size and wall thicknesses to meet your project’s needs—including forged fittings in dimension as per ASTM ,ASME B16.9, B16.11, MSS SP-43, MSS SP-95 and weight-kg. per mtr. weight & thickness of alloy 20 forged fittings .
Saffron Steel & Engineering. always focus on to offer industry-oriented solutions. We are providing Fittings or any product by considering all the requirements and demands of industries. We aim to meet all expectations and quality standards required to sectors. With methodical expertise and use of latest technology, we design unique and perfectly match solution for our clients. We are supplying a comprehensive range of products to fulfil the needs of numerous industries. Our high-quality Alloy 20 Forged Fittings are completing applications and operations of industries such as offshore oil drilling industry, medical science, power station, pulp and paper industry pharmaceuticals equipment, heat exchangers, and condensers.
Alloy 20 Forged Fittings Specifications
Specification : ASTM B564 / ASME SB564
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS.
Socket-weld End - 3000 / 6000/ 9000 LBS.
ASME SB564 Alloy 20 Forged Fittings Equivalent Grades
| STANDARD |
UNS |
WERKSTOFF NR. |
EN |
AFNOR |
| Alloy 20 |
N08020 |
2.4660 |
NiCr20CuMo |
Z2NCUD31-20AZ |
We are maintaining our quality standards higher, and for this, we have our own set of procedures. We check and verify quality as well as the performance of Fittings in the whole manufacturing process, which helps to avoid defects. We perform different tests at various stages of production which ensure accuracy of Fittings. We also perform tests to check the authenticity of alloy 20 before use it in Fitting manufacturing. To check other standards, we test Alloy 20 Forged Fittings with flattening test, hardness test, and other non-destructive tests. Along with quality testing, we are also taking care of convenient doorstep service at affordable rates and by following deadlines.

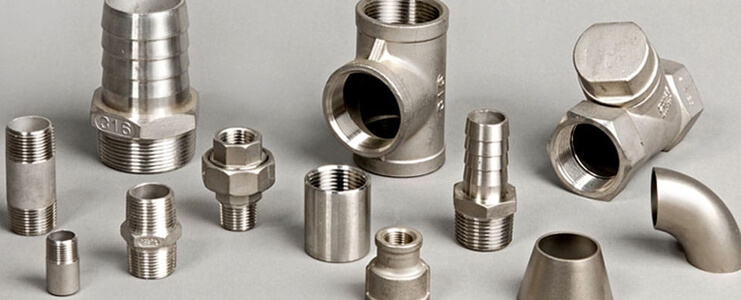

Alloy 20 Forged Fittings Types
ANSI B16.11 Alloy 20 Socketweld Elbow
Carpenter 20Cb-3 90 deg Forged Elbow
UNS N08020 Forged Elbow
Alloy 2.4660 Forged Elbow
ASTM B564 Carpenter 20 Forged Elbow
Alloy 20 45 deg Threaded Elbow
Alloy 20Cb-3® 90 deg Socketweld Elbow
Alloy 20 45 deg Forged Elbow
ANSI B16.11 Alloy 20 Forged Tee
ASTM B564 Carpenter 20 Forged Equal Tee
Alloy 20 Socketweld Tee
Alloy 20 Threaded Tee
Carpenter 20Cb-3® Threaded Equal Tee
Alloy 20 Reducing Tee
UNS N08020 Forged Unequal Tee
Alloy 2.4660 Reducing Tee
ANSI B16.11 Alloy 20 Forged Cross
ASTM B564 Carpenter 20 Forged Equal Cross
UNS N08020 Threaded Equal Cross
Alloy 20 Socketweld Equal Cross
Alloy 20 Threaded Cross
Alloy 20 Forged Unequal Cross
Alloy 2.4660 Reducing Cross
ANSI B16.11 Alloy 20 Full Coupling
ASTM B564 Carpenter 20 Threaded Full Coupling
UNS N08020 Full Coupling
Alloy 20 Full Coupling
Alloy 20 Forged Full Coupling
Alloy 2.4660 Socketweld Full Coupling
Alloy 20 Half Coupling
ASTM B564 Carpenter 20 Threaded Half Coupling
UNS N08020 Socket weld Half Coupling
ANSI B16.11 Alloy 20 Half Coupling
Alloy 2.4660 Half Coupling
Alloy 20 Forged Pipe End Cap
ASTM B564 Carpenter 20 Forged Pipe Cap
UNS N08020 Forged Pipe End Cap
Alloy 20 Threaded Pipe Cap
Alloy 2.4660 SocketWeld Pipe Cap
Alloy 20 Forged Threaded Union
ASTM B564 Carpenter 20 Union
UNS N08020 Forged Union
Alloy 20 SocketWeld Union
Alloy 2.4660 Forged Union
Alloy 20 Hex Head Bushing
ASTM B564 Carpenter 20 Threaded Bushing
UNS N08020 Forged Bushing
Alloy 20 Forged Threaded Bushing
Alloy 2.4660 Bushing
Alloy 20 Forged Fittings Manufacturing Standards:
All Forged Fittings is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| ASTM B564 – ASME SB564 |
Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 |
Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 |
Socket Welding and Threaded Forged Fittings |
| MSS SP-43 |
Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 |
Swage(d) Nipples and Bull Plugs |
| BS3799 |
Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Chemical Composition of Alloy 20 Forged Fittings
| Grade |
C |
Mn |
Si |
S |
Cu |
Ni |
Cr |
Fe |
Mo |
P |
| Alloy 20 |
0.07 max |
2.00 max |
1.00 max |
0.035 max |
3.00 – 4.00 |
32.00 – 38.00 |
19.00 – 21.00 |
29.85 min* |
2.00 – 3.00 |
0.045 max |
Mechanical Properties of Alloy 625 Forged Fittings
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| Alloy 20 |
8.1 g/cm3 |
1443 °C (2430 °F) |
Psi -80,000, MPa -551 |
Psi - 35,000, MPa - 241 |
30 % |
Alloy 20 Forged Fittings Application Industries
- Chemical Industry
- Petrochemical industry
- Marine & Power Transmission industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
