SMO 254 is austenitic stainless-steel material used as a raw material for the production of various materials. We at Saffron Steel & Engineering manufacture multiple products that are useful in operations. We produce SMO 254 Pipe Fittings by combing resistant and corrosive properties of the raw material. SMO 254 gives specific features to finished products, and hence, our finished product becomes resistant to corrosions, acids, pitting, etc. SMO 254 is tough to undergo machining and welding processes. It is due to the high work hardening rate.
Apart from this, we make use of advanced manufacturing techniques, machines, and testing tools. We at Saffron Steel & Engineering have the best in class manufacturing and testing facilities. SMO 254 Pipe Fittings are cost-effective products. It is suitable to implement in various industries like fuel and gas industries, food processing equipment plants, bleaching units of the pulp industry. Besides this, our product works smoothly in heat exchangers, saltwater handling units.
Saffron Steel & Engineering. carries a wide range of SMO 254 pipe fittings in a variety of size, wall thicknesses, dimensions and tolerance to meet your project’s needs—including pipe fittings in dimension as per ASME/ANSI B16.9, ASME B16.25, ASME B16.28, ASME B16.49, MSS-SP-43 Fittings / weight & thickness of 254 SMO pipe fittings.
Our quality and production experts follow specific standard procedures and norms. Hence, they start manufacturing only after confirming the quality and features of raw material. We check the raw material for various purposes. The mechanical properties like strength, elasticity, shear force, and hardness are the important things that affect the quality of the product. Along with this, our expert confirms product for thermal properties and other specific facts like its warranty, third party analysis.
The product SMO 254 Pipe Fittings that we manufacture are tough and resistant to local corrosive agents. Hence, we supply products along with specific test reports and documents. We at Saffron Steel & Engineering perform third party inspection, content tests. To ensure product quality, we do perform radiography tests. Various tests like hardness test, micro, and macro test, product flattening tests confirm the product quality and sustainability.
SMO 254 Pipe Fittings Specifications
Specification : ASTM A403 / ASME SA403
Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25 : Buttwelding Ends
ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range : ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size : 1/2" - 10"
Welded Butt Weld Fittings Size : 1/2" - 48"
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / Welded / Fabricated
ASTM A403 SMO 254 Stainless Steel Buttweld Pipe Fittings Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
SIS |
AFNOR |
EN |
| 254 SMO |
1.4547 |
S31254 |
2378 |
Z1 CNDU 20.18.06Az |
X1CrNiMoCuN20-18-7 |
The team of safety and quality experts maintains the various documents like safety reports, fumigation reports, product testing plans, heat treatment chart, etc. Apart from this, we keep the stock of a product to match the immediate requirements. We satisfy every customer by offering them a product of variable size and shapes.

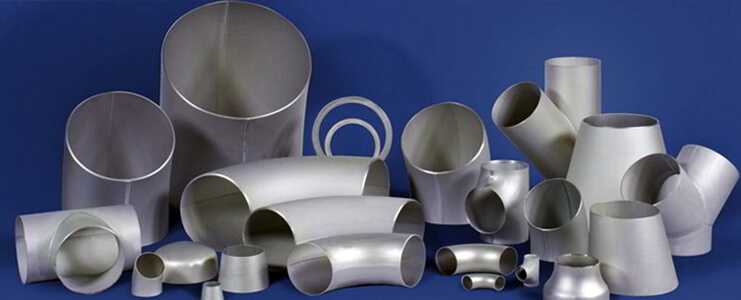

SMO 254 Pipe Fittings Types
SMO 254 Elbow
ASTM A403 SMO 254 SS 90° Elbow
SS SMO 254 45° Elbow
SMO 254 180° Elbow
SMO 254 Long Radius - LR Elbow
SMO 254 Short Radius - SR Elbow
SMO 254 Tee
254 SMO Stainless Steel Tee
SMO 254 Equal Tee
SMO 254 Unequal Tee
SMO 254 Pipe Tee
SMO 254 Straight Tees
SMO 254 Short Stub End
SMO 254 UNS S31254 Short Stub End
SMO 254 DIN 1.4547 Short Stub End
ASME / ANSI B16.9 SMO 254 Short Stub End
SMO 254 Long Stub End
SMO 254 UNS S31254 Long Stub End
SMO DIN 1.4547 Long Stub End
ASME / ANSI B16.9 Stainless Steel 254 SMO Long Stub End
SMO 254 Eccentric Reducer
ASTM A403 SMO 254 SS Eccentric Reducer
Stainless Steel S31254 Eccentric Reducer
Stainless Steel 1.4547 Eccentric Reducer
ANSI B16.9 SMO 254 Eccentric Reducer
SMO 254 Concentric Reducer
ASTM A403 SS 254 SMO Concentric Reducer
SMO 254 UNS S31254 Concentric Reducer
DIN 1.4547 Concentric Reducer
ASME B16.9 SMO 254 Concentric Reducer
SMO 254 Buttweld Cap
Stainless Steel Grade 254 SMO Caps
SMO 254 Pipe Cap
SMO 254 End Cap
SMO 254 Pipe End Cap
ASME / ANSI B16.9 SMO 254 End Pipe Cap
SMO 254 Cross
ASTM A403 Stainless Steel 254 SMO Cross
UNS S31254 Buttweld Cross
DIN 1.4547 Reducing Cross
ANSI B16.9 SMO 254 Unequal Cross
SMO 254 Equal Cross
SMO 254 Pipe Fittings Dimensions :
| Nominal Pipe Size |
All Fittings |
All Fittings |
All Fittings |
Elbows/ Tees |
180° Return Bends |
180° Return Bends |
180 Deg Return Bends |
Reducers |
Caps |
| NPS |
O.D. at Bevel (1), (2) |
I.D. at End
(1), (3), (4)
|
Wall Thickness (3) |
Centre-to-End Dimension A,B,C,M |
Centre-to-Centre O |
Back-to-Face K |
Alignment of Ends U |
Overall Length H |
Overall Length E |
| ½ to 2½ |
0.06
-0.03
|
0.03 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 3 to 3 ½ |
0.06 |
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 4 |
0.06 |
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 5 to 8 |
0.09
-0.06
|
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.25 |
| 10 to 18 |
0.16
-0.12
|
0.12 |
Not less than 87.5% of nominal thickness |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
| 20 to 24 |
0.25
-0.19
|
0.19 |
Not less than 87.5% of nominal thickness |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
| 26 to 30 |
0.25
-0.19
|
0.19 |
Not less than 87.5% of nominal thickness |
0.12 |
… |
… |
… |
0.19 |
0.38 |
| 32 to 48 |
0.25
-0.19
|
0.19 |
Not less than 87.5% of nominal thickness |
0.19 |
… |
… |
… |
0.19 |
0.38 |
SMO 254 Pipe Fittings Chemical Composition
| Grade |
Ni |
Cr |
Mo |
Cu |
N |
C |
Mn |
Si |
P |
S |
| SMO 254 |
17.5 - 18.5 |
19.5 - 20.5 |
6 - 6.5 |
0.5 - 1 |
0.18 - 0.22 |
0.02 max |
1 max |
0.8 max |
0.03 max |
0.01 max |
SMO 254 Pipe Fittings Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1320-1390 ℃ |
650 |
300 |
35 % |
SMO 254 Pipe Fittings Application Industries
- Textile machinery
- Oil and gas industry
- Pulp and paper industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
