Hastelloy C276 is a superalloy of Nickel, Molybdenum, and Chromium, which contains a small amount of Tungsten. This alloy offers excellent corrosion resistance property in various environmental conditions. Hastelloy C276 has excellent resistance to pitting, acid, crevice corrosion, and also in reducing the environment. This alloy is most widely used in many industrial applications because of its excellent qualities and features.
We, Saffron Steel & Engineering., are one of the leading manufacturers and suppliers of Hastelloy products. Hastelloy C276 Sheet Plate are one of the best-selling products from our inventory. We are providing the outcomes in a broader range so that our clients can get any required product or component. We are manufacturing these Plates as per the needs and requirements of our clients. Hastelloy C276 Sheet Plate are available in different sizes, wall thickness, length, specifications.
Saffron Steel & Engineering. carries a wide range of hastelloy c276 sheets and plates in a variety of lengths, ODs, IDs, size and wall thicknesses to meet your project’s needs—including sheets and plates in dimension as per ASTM and weight-kg. per mtr. weight & thickness of c276 hastelloy sheets plates .
We are following all industrial and international quality standards while producing these Plates. This helps us to deliver perfectly suitable Plates to our clients from all over the globe. We are supplying Hastelloy C276 Sheet Plate in qualitative variety. We are producing these Plates by making effective use of good quality of alloy. Our high-grade Hastelloy C276 Sheet Plate has various useful features like high tensile strength, easy to use, ruggedly constructed, good dimensional accuracy, excellent surface finishes, and hold high temperature.
Saffron Steel & Engineering. is focusing on fulfilling the needs and demands of our clients by delivering satisfying solutions to them. Under the strict guidance of our skilled professionals, we are producing excellent quality of the Hastelloy C276 Sheet Plate. With the use of the latest technology and modern machinery, we are enhancing the quality and quantity of products. This makes us able to deliver Hastelloy C276 Sheet Plate in the required amount.
Hastelloy C276 Sheets and Plates Specifications
Specification : ASTM B575 / ASME SB575
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Hastelloy Sheet : thickness range from .008" to .0125"
Hastelloy Plate : thickness ranges from .0125" to 5.00"
Size : 15NB to 150NB In
Tempers : Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form: Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
ASME SB575 Hastelloy C276 Sheets and Plates Equivalent Grades
| STANDARD |
UNS |
WNR. |
EN |
JIS |
OR |
GOST |
| Hastelloy C276 |
N10276 |
2.4819 |
NiMo16Cr15W |
NW 0276 |
ЭП760 |
ХН65МВУ |
With all beneficial features, our high-grade Plates are performing well in all industrial operations. At reasonable rates, we are providing the most precise Hastelloy C276 Sheet Plate with superior finishing. We are to offer convenient doorstep service to our esteem clients and also to welcome new clients.
Hastelloy C276 Sheets and Plates Types

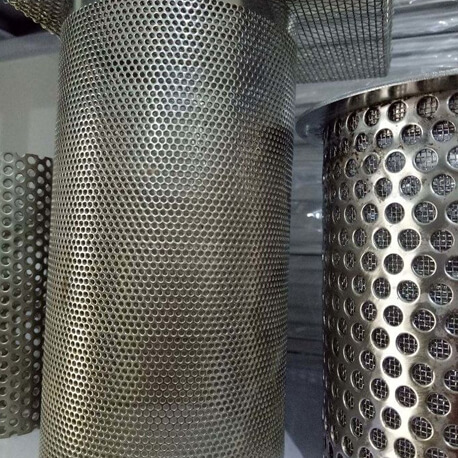

Alloy C276 Perforated Sheets
ASTM B575 Hastelloy C276 Perforated Sheets
UNS N10276 Perforated Sheets
Hastelloy 2.4819 Perforated Sheets

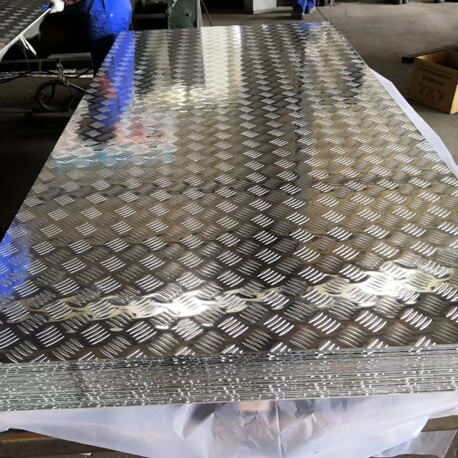

Hastelloy® C276 Chequered Plates
ASTM B575 Alloy C276 Chequered Plates
UNS N10276 Chequered Plates
Hastelloy 2.4819 Chequered Plates
Hastelloy C276 Shim Sheets
ASTM B575 Hastelloy C276 Shim Sheets
UNS N10276 Shim Sheets
Alloy 2.4819 Shim Sheets
Hastelloy C276 Coils
ASTM B575 Alloy C276 Coils
UNS N10276 Coils
Hastelloy 2.4819 Coils
Hastelloy C276 Sheets Sizes in Stock:
All Sheets and Plates is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Hastelloy Gauge Width and Length |
Weight Lbs. per Sq. Ft. |
Estimated Weight per Sheet |
| 7 ga. (.1874") x 48 x 120 |
7.871 |
314.8 |
| 10 ga. (.135") x 48 x 120 |
5.670 |
226.8 |
| 11 ga. (.120") x 36 x 120 |
5.040 |
151.2 |
| 11 ga. (.120") x 48 x 96 |
5.040 |
161.3 |
| 11 ga. (.120") x 48 x 120 |
5.040 |
201.6 |
| 11 ga. (.120") x 48 x 144 |
5.040 |
241.9 |
| 11 ga. (.120") x 60 x 96 |
5.040 |
252.0 |
| 12 ga. (.105") x 36 x 120 |
4.410 |
132.3 |
| 12 ga. (.105") x 48 x 120 |
4.410 |
176.4 |
| 12 ga. (.105") x 60 x 120 |
4.410 |
220.5 |
| 14 ga. (.075") x 36 x 120 |
3.150 |
94.50 |
| 14 ga. (.075") x 48 x 120 |
3.150 |
126.0 |
| 16 ga. (.060") x 36 x 120 |
2.520 |
75.60 |
| 16 ga. (.060") x 48 x 96 |
2.520 |
80.64 |
| 16 ga. (.060") x 48 x 120 |
2.520 |
100.8 |
| 16 ga. (.060") x 60 x 120 |
2.520 |
126.0 |
| 18 ga. (.048") x 36 x 120 |
2.016 |
60.48 |
| 18 ga. (.048") x 48 x 120 |
2.016 |
80.64 |
| 20 ga. (.036") x 36 x 120 |
1.512 |
45.36 |
| 20 ga. (.036") x 48 x 120 |
1.512 |
60.48 |
| 22 ga. (.030") x 36 x 120 |
1.260 |
37.80 |
| 22 ga. (.030") x 48 x 96 |
1.260 |
40.32 |
| 22 ga. (.030") x 48 x 120 |
1.260 |
50.40 |
| 24 ga. (.024") x 36 x 120 |
1.008 |
30.24 |
| 24 ga. (.024") x 48 x 120 |
1.008 |
40.32 |
| 26 ga. (.018") x 36 x 120 |
.7560 |
22.68 |
| 26 ga. (.018") x 48 x 120 |
.7560 |
30.24 |
| 28 ga. (.015") x 36 x 120 |
.6300 |
18.90 |
Chemical Composition of Hastelloy C276 Sheets and Plates
| Grade |
Ni |
C |
Mo |
Mn |
Si |
Fe |
P |
S |
Co |
Cr |
W |
V |
| Hastelloy C276 |
Balance |
0.01 max |
15–17 |
1.0 max |
0.08 max |
4–7 |
0.04 max |
0.03 max |
2.5 max |
14.5–16.5 |
3–4.5 |
0.35 max |
Mechanical Properties of Alloy C276 Sheets and Plates
| Grade |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| Hastelloy C276 |
8.89 g/cm3 |
1370 °C (2500 °F) |
Psi – 1,15,000 , MPa – 790 |
Psi – 52,000 , MPa – 355 |
40 % |
Hastelloy C276 Sheets and Plates Application Industries
- Chemical Industry
- Petrochemical industry
- Marine & Power Transmission industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
