Saffron Steel & Engineering is the largest company famous for manufacturing of Alloy Steel Pipe Fittings. We use high-quality steel alloy as a raw material. The company supplies the best quality pipe fittings that are useful in various industries. We export, supply and distribute Alloy Steel Pipe Fittings holds the capacity to withstand in hazardous chemicals and gaseous environment.
Saffron Steel & Engineering provides the best quality product suitable to use in power stations, nuclear industries where harmful chemicals are present. These industries require leakproof piping. Our product is available in variable sizes, customizable shapes with the precise surface finish. The product, i.e., Alloy Steel Pipe Fittings are rust-proof, resistant to work in high-temperature range, chemically neutral. Also, they are easy to install at any point.
Saffron Steel & Engineering. carries a wide range of Alloy Steel ASTM A234 Wp1 Wp5, Wp9, Wp11, Wp22, Wp91 pipe fittings in a variety of size, wall thicknesses, dimensions and tolerance to meet your project’s needs—including pipe fittings in dimension as per ASME/ANSI B16.9, ASME B16.25, ASME B16.28, ASME B16.49, MSS-SP-43 Fittings / weight & thickness of Alloy Steel pipe fittings.
Saffron Steel & Engineering offers Alloy Steel Pipe Fittings by considering national and international quality standards. We make use of specially designed innovative machines, techniques. We offer customized Alloy Steel Pipe Fittings to match the customer requirements and operational demands.
Being a leader of manufacturing of Alloy Steel Pipe Fittings, we assist our client by offering a range of products available in variable sizes, diameters, thicknesses. In addition to this, Saffron Steel & Engineering supplies Alloy Steel Pipe Fittings only after performing relevant tests, along with its certificates.
We at Saffron Steel & Engineering have a team of experienced production and quality experts. Under the guidance of such an excellent team of professionals, the company ensures product quality. The company tries to avoid the transitory damages by covering or packing product into appropriate material.
Alloy Steel Pipe Fittings Specifications
Specification : ASTM A234 / ASME SA234
Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25 : Buttwelding Ends
ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range : ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size : 1/2" - 10"
Welded Butt Weld Fittings Size : 1/2" - 48"
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / Welded / Fabricated
Our quality experts analyze each batch of Alloy Steel Pipe Fittings before dispatching to the client. Here they check each batch for physical, chemical and mechanical parameters. Saffron Steel & Engineering ships every product along with proper documentation. We present raw material analysis certificate, radiography certificate, third party inspection report to our client. Apart from these tests, we perform micro and macro analysis of industrial Alloy Steel Pipe Fittings.
Alloy Steel Pipe Fittings is useful in off-shore oil drilling companies, power stations, petrochemical industries, pharma and chemical industries, heat exchangers and condensers.

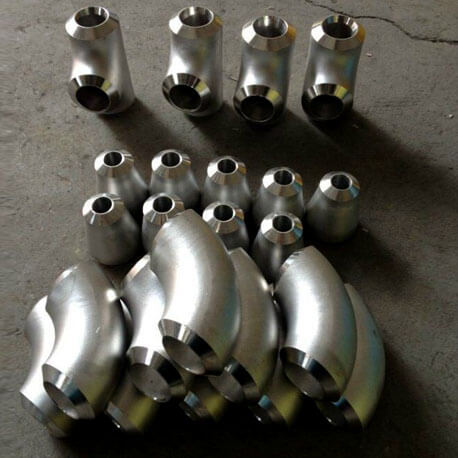

Alloy Steel Pipe Fittings Types

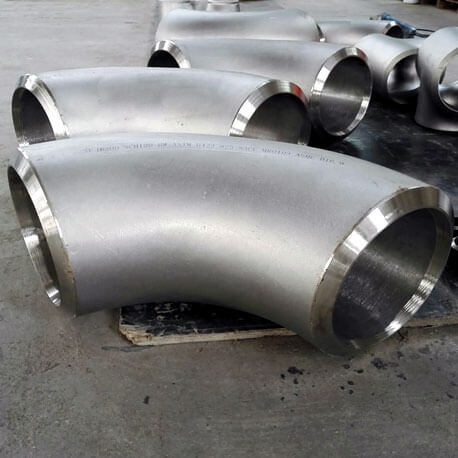

Alloy Steel Elbow
ASTM A234 Alloy Steel 90° Elbow
Alloy Steel 45° Elbow
Alloy Steel 180° Elbow
Alloy Steel Long Radius - LR Elbow
Alloy Steel Short Radius - SR Elbow

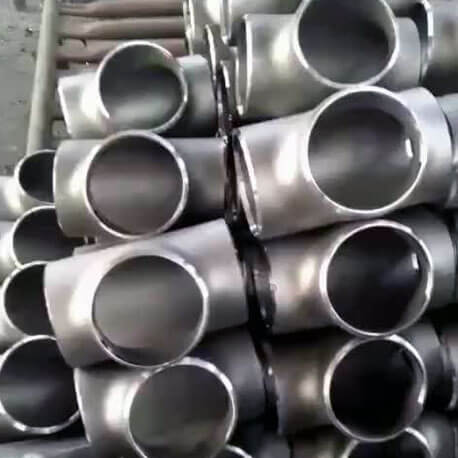

Alloy Steel Tee
Chrome Moly Tee
Alloy Steel Equal Tee
Alloy Steel Unequal Tee
Alloy Steel Pipe Tee
Alloy Steel Straight Tees
Alloy Steel Short Stub End
ASTM A234 Alloy Steel Short Stub End
Chrome Moly Short Stub End
Cr-Mo Short Stub End
ASME / ANSI B16.9 Short Stub End
Alloy Steel Long Stub End
ASTM A234 Alloy Steel Long Stub End
Alloy Steel Long Stub End
Chrome Moly Long Stub End
ASME / ANSI B16.9 Long Stub End
ASTM A234 CrMo Long Stub End
Alloy Steel Eccentric Reducer
Chrome Moly Eccentric Reducer
ASTM A234 Alloy Steel Eccentric Reducer
ASME / ANSI B16.9 CrMo Eccentric Reducer
Alloy Steel Concentric Reducer
Chrome Moly Concentric Reducer
CrMo Concentric Reducer
ASME B16.9 Alloy Steel Concentric Reducer
Alloy Steel Buttweld Cap
Alloy Steel Caps
Alloy Steel Pipe Cap
Alloy Steel End Cap
Alloy Steel Pipe End Cap
ANSI B16.9 Alloy Steel End Pipe Cap
Alloy Steel Cross
Alloy Steel Buttweld Cross
Alloy Steel Reducing Cross
ANSI B16.9 Alloy Steel Unequal Cross
Alloy Steel Equal Cross
Alloy Steel Pipe Fittings Dimensions :
| Nominal Pipe Size |
All Fittings |
All Fittings |
All Fittings |
Elbows/ Tees |
180° Return Bends |
180° Return Bends |
180 Deg Return Bends |
Reducers |
Caps |
| NPS |
O.D. at Bevel (1), (2) |
I.D. at End
(1), (3), (4)
|
Wall Thickness (3) |
Centre-to-End Dimension A,B,C,M |
Centre-to-Centre O |
Back-to-Face K |
Alignment of Ends U |
Overall Length H |
Overall Length E |
| ½ to 2½ |
0.06
-0.03
|
0.03 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 3 to 3 ½ |
0.06 |
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 4 |
0.06 |
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
| 5 to 8 |
0.09
-0.06
|
0.06 |
Not less than 87.5% of nominal thickness |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.25 |
| 10 to 18 |
0.16
-0.12
|
0.12 |
Not less than 87.5% of nominal thickness |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
| 20 to 24 |
0.25
-0.19
|
0.19 |
Not less than 87.5% of nominal thickness |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
| 26 to 30 |
0.25
-0.19
|
0.19 |
Not less than 87.5% of nominal thickness |
0.12 |
… |
… |
… |
0.19 |
0.38 |
| 32 to 48 |
0.25
-0.19
|
0.19 |
Not less than 87.5% of nominal thickness |
0.19 |
… |
… |
… |
0.19 |
0.38 |
Alloy Steel Pipe Fittings Application Industries
- Textile machinery
- Oil and gas industry
- Pulp and paper industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
