Sanicro 28 Pipe Fittings

Sanicro 28 Stub End, Sanicro 28 Buttweld Elbow, Alloy 28 Pipe Fittings, Sanicro 28 Reducing Tee, Sanicro® 28 Pipe Fittings in India.

Table Of Content

What is Sanicro 28 Pipe Fittings
Standard Specifications for Sanicro 28 Pipe Fittings
ASTM A403 Sanicro 28 Pipe Fittings Equivalent Grades
Sanicro 28 Pipe Fittings Forms

Sanicro 28 Elbow
Sanicro 28 Tee
Sanicro 28 Short Stub End
Sanicro 28 Long Stub End
Sanicro 28 Eccentric Reducer
Sanicro 28 Concentric Reducer
Sanicro 28 Cap
Sanicro 28 Cross

Sanicro 28 Pipe Fittings Dimensions
Chemical Composition of Sanicro 28 Pipe Fittings
Mechanical Properties of Sanicro 28 Pipe Fittings
Sanicro 28 Pipe Fittings Application Industries
People Also Searched for

Enquiry Now

Sanicro® 28 Pipe Cap, Sanicro 28 Buttweld Fittings, Incoloy Alloy 28 45 deg.Elbow, Sanicro 28 Reducer, Sanicro 28 90 deg Elbow, ANSI B16.9 Sanicro 28 Buttweld Pipe Fittings Suppliers in India.

Sanicro 28 Pipe Bend in Mumbai, Sanicro® 28 Pipe Fittings Price List in India, Sanicro 28 Pipe Elbow Suppliers, Sanicro 28 Seamless Pipe Fittings, Sanicro 28 Buttweld Cross Manufacturers, Sanicro 28 Welded Pipe Fittings Exporter in India.

Sanicro 28 Pipe Fittings designed and developed by Saffron Steel & Engineering are of high quality. We manufacture the multi-purpose product by using authentic stainless steel as a raw material. We customize the product in such a way that it can sustain well in highly corrosive conditions. The raw material that we use is resistant to strong acids and other agents.

We have created collaboration with partners from different industrial areas. We import the high-grade raw material from our renowned suppliers. We start the manufacturing only after checking raw material for various physical, chemical and mechanical properties. Even performing raw material tests, we do check the finished product for the same type of quality parameters. In addition to this, we do cross verify thermal properties of Sanicro 28 Pipe Fittings.

Saffron Steel & Engineering. carries a wide range of Sanicro 28 pipe fittings in a variety of size, wall thicknesses, dimensions and tolerance to meet your project’s needs—including pipe fittings in dimension as per ASME/ANSI B16.9, ASME B16.25, ASME B16.28, ASME B16.49, MSS-SP-43 Fittings / weight & thickness of Sanicro 28 pipe fittings.

We have a good and massive team of quality determinants and production experts. They give their best to make the product of outstanding features and properties. Our team works in the most diverse environments and bring the outcome of international quality standards. Our product has applications, particularly for evaporator tubes, piping and heat exchangers. Besides this, the product can work well in the oil and gas industries where there are high chances of corrosion and leakage.

We are the excellent manufacturer and supplier of pipe fittings; we perform various fabrication procedures. Here, the product undergoes high-temperature conditions and treatments to confirm ductility and durability. We at Saffron Steel & Engineering have a well-established manufacturing unit along with well-equipped analytical laboratory where we perform various tests. The company can offer a comprehensive range of Sanicro 28 Pipe Fittings along with proper documentation and reporting. Our machinist manufactures the products in sizes and specifications by using variable grades of raw material to match the client’s requirements.

Sanicro 28 Pipe Fittings Specifications

Specification : ASTM A403 / ASME SA403

Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings

ASME B16.25 : Buttwelding Ends

ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends

MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Size Range : ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)

Seamless Butt Weld Fitting Size : 1/2" - 10"

Welded Butt Weld Fittings Size : 1/2" - 48"

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type : Seamless / Welded / Fabricated

Sanicro 28 Buttweld Pipe Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	EN
Sanicro 28®	1.4563	N08028	X1NiCrMoCuN31-27-4

The company is involved in the production of various range of products. The product is available in the customized form or various sizes, shapes to match the immediate operation need. We dispatch product only after performing a set of tests. We keep the product quality intact and hence we pack the product in a suitable material. Proper packing ensures no damage during storage and transportation.

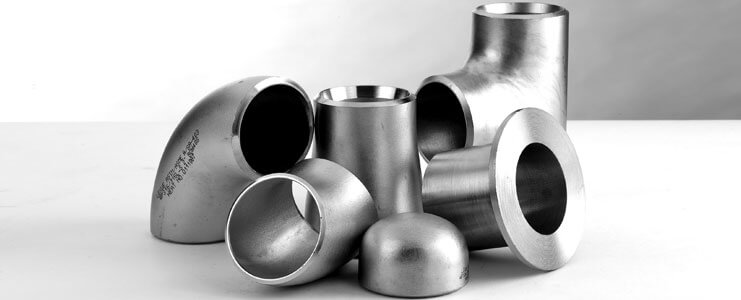

Sanicro 28 Pipe Fittings Types

Sanicro 28 Elbow

Sanicro 28 90° Elbow

Sanicro 28 45° Elbow

ANSI B16.9 Sanicro 28 180° Elbow

Sanicro 28 Long Radius - LR Elbow

Sanicro 28 Short Radius - SR Elbow

Sanicro 28 Tee

Alloy UNS N08028 Tee

Sanicro 28 Equal Tee

Sanicro 28 Unequal Tee

ANSI B16.9 Sanicro 28 Pipe Tee

Sanicro® 28 Straight Tees

Sanicro 28 Short Stub End

Incoloy Alloy 28 Short Stub End

Sanicro UNS N08028 Short Stub End

Sanicro 1.4563 Short Stub End

ASME / ANSI B16.9 Alloy 28 Short Stub End

Sanicro 28 Long Stub End

Alloy 28 Long Stub End

Sanicro Alloy UNS N08028 Long Stub End

Sanicro DIN 1.4563 Long Stub End

ASME / ANSI B16.9 Sanicro 28 Long Stub End

Sanicro 28 Eccentric Reducer

Incoloy Alloy 28 Eccentric Reducer

Sanicro Alloy N08028 Eccentric Reducer

Sanicro 1.4563 Eccentric Reducer

ASME / ANSI B16.9 Sanicro 28 Eccentric Reducer

Sanicro 28 Concentric Reducer

ASTM A403 Sanicro® 28 Concentric Reducer

Sanicro Alloy UNS N08028 Concentric Reducer

Sanicro DIN 1.4563 Concentric Reducer

Alloy 28 Concentric Reducer

Sanicro 28 Buttweld Cap

Sanicro 28 Caps

Sanicro® 28 Pipe Cap

Alloy 28 End Cap

Sanicro 28 Pipe End Cap

ASME / ANSI B16.9 Sanicro 28 End Pipe Cap

Sanicro 28 Cross

Alloy 28 Cross

Alloy UNS N08028 Buttweld Cross

DIN 1.4563 Reducing Cross

ANSI B16.9 Sanicro® 28 Unequal Cross

Sanicro® 28 Equal Cross

Sanicro 28 Pipe Fittings Dimensions :

Nominal Pipe Size	All Fittings	All Fittings	All Fittings	Elbows/ Tees	180° Return Bends	180° Return Bends	180 Deg Return Bends	Reducers	Caps
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Wall Thickness (3)	Centre-to-End Dimension A,B,C,M	Centre-to-Centre O	Back-to-Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.19	…	…	…	0.19	0.38

Sanicro 28 Pipe Fittings Chemical Composition

Grade	C %	Si ≤ %	Mn ≤ %	P ≤ %	S ≤ %	Cr %	Mo %	Ni %	N %	Cu %
Sanicro® 28	≤ 0.02	0.70	2.00	0.03	0.01	26.0-28.0	3.00-4.00	30.0-32.0	≤ 0.11	0.70-1.50

Sanicro 28 Pipe Fittings Mechanical Properties

Tensile strength R_m N/mm²	0.2% Yield strength R_p ≥ N/mm²	Elongation A₅ ≥ %	Hardness HB 30 ≤ HB	Modulus of elasticity kN/mm²
500-750	220	35/30	230	195

Sanicro 28 Pipe Fittings Application Industries

Textile machinery
Oil and gas industry
Pulp and paper industry
Power plants
Energy industries
Furniture
Pharmaceutical processing industry
Modern architecture
Home appliances
Water waste projects
Synthetic fiber
Heat exchanger
Fluid piping
Dairy and food processing
