Saffron Steel & Engineering. is a manufacturer and supplier of multiple products that are useful to complete industrial applications. We are manufacturing all the required components and products in various alloys and specifications. SMO 254 is also one of the suitable materials for Compression Tube Fitting manufacturing. SMO 254 is an Austenitic Stainless-Steel material that is useful to manufacture SMO 254 Compression Tube Fitting. We are delivering excellent quality Fittings to various industries.
We are using quality material for products which make us able to deliver satisfying quality to our clients. We follow specific standard procedures and norms while manufacturing SMO 254 Compression Tube Fitting. We start producing only after confirming the quality of raw material. Quality testing is the most critical and essential step in production. Our high-grade SMO 254 Compression Tube Fitting has excellent mechanical properties like strength, elasticity, and hardness.
Saffron Steel & Engineering. carries a wide range of SMO 254 compression tube fittings in a variety of Tube OD, size, wall thickness, maximum working pressures and temperatures for compression fittings on pneumatic applications to meet your project’s .
Our skilled professionals test the manufacturing process right from the selection of material till the final dispatch of products. Our team of experts is working hard to deliver expected quality SMO 254 Compression Fitting. They check every essential parameter by performing various destructive and non-destructive tests at different stages of manufacturing. We conduct third party inspection to ensure product quality. We do perform tests like radiography tests, hardness tests, micro, and macro test, product flattening tests to ensure quality and sustainability.
Saffron Steel & Engineering. is updating the manufacturing process with advanced manufacturing techniques, machines, and testing tools. By considering the changing needs of different industries, we are producing SMO 254 Compression Tube Fitting variety of sizes, dimensions, and specifications. We satisfy our clients by providing perfectly matching solutions within the decided time.
SMO 254 Tube Fittings Specifications
Size Range : 1/16 in. to 2 in. & 2mm to 50 mm.
End Connection Thread Type : NPT - ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel - ISO 228 | ISO/BSP Tapered - ISO 7, BS EN 10226-1 | SAE (Unified) - ASME B1.1
Dimensional Range : 1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures : Upto 2000 to 6000 PSI
Medium-Pressure, Gaugeable : Pressure Ratings: Up to 20 000 psig (1378 bar)
Temperature Ratings: Up to 1000°F (537°C)
High-Pressure : Pressure Ratings: Up to 60 000 psig (4134 bar)
Temperature Ratings: Up to 1000°F (537°C)
Type : Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
SMO 254 Compression Tube Fittings Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
SIS |
AFNOR |
EN |
| 254 SMO |
1.4547 |
S31254 |
2378 |
Z1 CNDU 20.18.06Az |
X1CrNiMoCuN20-18-7 |
Our high-tech manufacturing firm makes us able to manufacture SMO 254 Compression Tube Fitting in bulk amount without compromising in quality. By using modern machinery and tools, we are manufacturing and testing SMO 254 Compression Tube Fitting. This helps us to offer precise and dimensionally accurate products. To provide suitable Fittings, we produce customized as well as non-customised to our esteem clients. We are here to provide the required products to various industries within the decided time and at affordable rates.

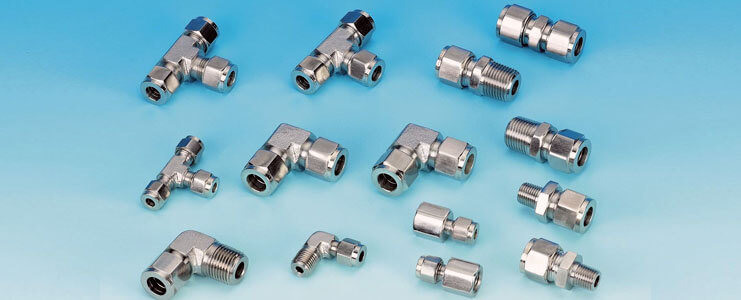

SMO 254 Compression Tube Fittings Types
SMO 254 Male Connector
SMO 254 Male Bulk Head Connector
SMO 254 Male Elbow
SMO 254 Male Run Tee
SMO 254 Male Branch Tee
SMO 254 Male Tube Adapter
SMO 254 45 Deg Positionable Male Elbow
SMO 254 Female Connector
SMO 254 Female Bulk Head Connector
SMO 254 Female Elbow
SMO 254 Female Run Tee
SMO 254 Female Branch Tee
SMO 254 Female Tube Adapter
SMO 254 Female Manometer Connector
SMO 254 Union
SMO 254 Reducing Union
SMO 254 Bulk Head Union
SMO 254 Union Elbow
SMO 254 Union Tee
SMO 254 Union Cross
SMO 254 Tube Socket Weld Union
SMO 254 Front Ferrule
SMO 254 Back Ferrule
SMO 254 Tube End Closure
SMO 254 Blanking Plug
SMO 254 Blanking End
SMO 254 Nut
SMO 254 Coupling Cap (Nuts)
SMO 254 Fitting End Closure
SMO 254 Stainless Steel Compression Tube Fittings Dimensions:
OD |
OD Actual |
Thread Designation - Nominal Size |
Thread per inch |
(fraction inch) |
(inches) |
(inches) |
NPT |
BSP |
5/16 |
0.3125 |
1/16 |
27 |
28 |
13/32 |
0.405 |
1/8 |
27 |
28 |
35/64 |
0.540 |
1/4 |
18 |
19 |
43/64 |
0.675 |
3/8 |
18 |
19 |
27/32 |
0.840 |
1/2 |
14 |
14 |
1-3/64 |
1.050 |
3/4 |
14 |
14 |
1-5/16 |
1.315 |
1 |
11-1/2 |
11 |
1-21/32 |
1.660 |
1-1/4 |
11-1/2 |
11 |
1-29/32 |
1.900 |
1-1/2 |
11-1/2 |
11 |
2-3/8 |
2.375 |
2 |
8 |
11 |
2-7/8 |
2.875 |
2-1/2 |
8 |
11 |
3-1/2 |
3.5 |
3 |
8 |
11 |
4 |
4.0 |
3-1/2 |
8 |
11 |
4-1/2 |
4.5 |
4 |
8 |
11 |
5-5/8 |
5.563 |
5 |
8 |
11 |
6-5/8 |
6.625 |
6 |
8 |
11 |
SMO 254 Compression Tube Fittings Chemical Composition
| Grade |
Ni |
Cr |
Mo |
Cu |
N |
C |
Mn |
Si |
P |
S |
| SMO 254 |
17.5 - 18.5 |
19.5 - 20.5 |
6 - 6.5 |
0.5 - 1 |
0.18 - 0.22 |
0.02 max |
1 max |
0.8 max |
0.03 max |
0.01 max |
SMO 254 Compression Tube Fittings Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1320-1390 ℃ |
650 |
300 |
35 % |
SMO 254 Tube Fittings Application Industries
- Textile machinery
- Oil and gas industry
- Pulp and paper industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
