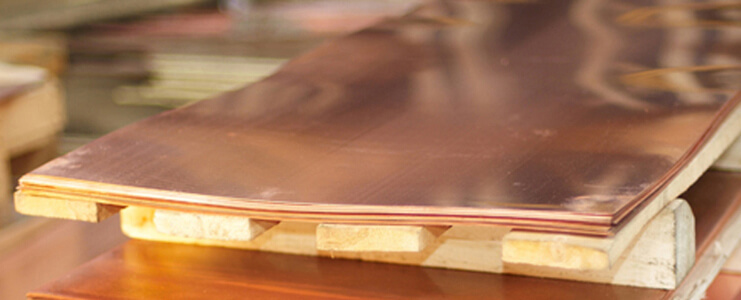

Saffron Steel & Engineering. is the leading manufacturer and exporter of high-quality Cupro Nickel 90/10 Sheet Plate. We are manufacturing these Plates in a variety of materials like Cu. By considering the needs of our clients, we are producing these Plates as per their requirements and demands. Cupro Nickel 90/10 Sheet Plate are most widely used in many industries to complete various tasks.
Our high-grade Cupro Nickel 90/10 Sheet Plate are high in strength, tensile, durable and also offers excellent resistance to corrosion. An alloy of Copper, Nickel and other strengthening elements such as Manganese, Iron and Carbon is perfect to manufacture Sheet Plate. Cu 90/10 is one of the grades of Cu which contains 90-10 proportion of Copper and Nickel.
Saffron Steel & Engineering. carries a wide range of Cupro Nickel 90 / 10 sheets and plates in a variety of lengths, ODs, IDs, size and wall thicknesses to meet your project’s needs—including sheets and plates in dimension as per ASTM and weight-kg. per mtr. weight & thickness of 90/10 cu-ni sheets plates .
We, Saffron Steel & Engineering., are offering Cu 90/10 Sheet Plate in all sizes, dimensions, and materials. Our Sheets and Plates offer excellent qualities like good general resistance, oxidation resistance and superior strength. It is suitable for many environmental conditions. These Sheets and Plates also has excellent ductility, excellent malleability, functional strength, and excellent corrosion resistance at high temperature. Resistance ability is more exceptional in Cu 90/10 Sheet Plate, it offers resistance to oxidizing acid chloride, cupric chloride, acetic, formic acid, and seawater.
Saffron Steel & Engineering. is focusing on to supply the highest quality at reasonable rates and within the decided time. We are using the highest quality material for manufacturing and also using advanced technology to produce precise Cu 90/10 Sheet Plate. We committed to offering complete customer satisfaction with quality, performance and durability of the products. With the help advanced machinery and tools, we are producing excellent quality Cu 90/10 Sheet Plate in bulk amount.
Cupro Nickel 90 / 10 Sheets and Plates Specifications
Specification : ASTM B171 / ASME SB171
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Monel Sheet : thickness range from .008" to .0125"
Monel Plate : thickness ranges from .0125" to 5.00"
Size : 15NB to 150NB In
Tempers : Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form: Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
ASME SB171 Cupro Nickel 90 / 10 Sheets and Plates Equivalent Grades
| STANDARD |
UNS |
DIN |
| Cupro Nickel 90/10 |
C70600 |
2.0872 |
We are offering Cu 90/10 Sheet Plate in the required amount to our clients. We are supplying the most precise Sheets and Plates with high end finishing, accurate dimensions, excellent durability, and timely delivery. We deliver damage-free Sheets and Plate with proper packing and shipping at our client’s location.
Cupro Nickel 90 / 10 Sheets and Plates Types
Copper Nickel 90/10 Perforated Sheets
ASTM B171 Cupro Nickel 90 / 10 Perforated Sheets
UNS C70600 Perforated Sheets
Cupro Nickel 2.0872 Perforated Sheets
Copper Nickel 90/10 Chequered Plates
ASTM B171 Cu-Ni 90/10 Chequered Plates
UNS C70600 Chequered Plates
Cupro Nickel 2.0872 Chequered Plates
Cupro Nickel 90 / 10 Shim Sheets
ASTM B171 Cupro Nickel 90 / 10 Shim Sheets
UNS C70600 Shim Sheets
Cu-Ni 2.0872 Shim Sheets
Cupro Nickel 90 / 10 Coils
ASTM B171 Copper Nickel 90/10 Coils
UNS C70600 Coils
Cu-Ni 2.0872 Coils
Cupro Nickel 90 / 10 Sheets Sizes in Stock:
All Sheets and Plates is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Monel Gauge Width and Length |
Weight Lbs. per Sq. Ft. |
Estimated Weight per Sheet |
| 7 ga. (.1874") x 48 x 120 |
7.871 |
314.8 |
| 10 ga. (.135") x 48 x 120 |
5.670 |
226.8 |
| 11 ga. (.120") x 36 x 120 |
5.040 |
151.2 |
| 11 ga. (.120") x 48 x 96 |
5.040 |
161.3 |
| 11 ga. (.120") x 48 x 120 |
5.040 |
201.6 |
| 11 ga. (.120") x 48 x 144 |
5.040 |
241.9 |
| 11 ga. (.120") x 60 x 96 |
5.040 |
252.0 |
| 12 ga. (.105") x 36 x 120 |
4.410 |
132.3 |
| 12 ga. (.105") x 48 x 120 |
4.410 |
176.4 |
| 12 ga. (.105") x 60 x 120 |
4.410 |
220.5 |
| 14 ga. (.075") x 36 x 120 |
3.150 |
94.50 |
| 14 ga. (.075") x 48 x 120 |
3.150 |
126.0 |
| 16 ga. (.060") x 36 x 120 |
2.520 |
75.60 |
| 16 ga. (.060") x 48 x 96 |
2.520 |
80.64 |
| 16 ga. (.060") x 48 x 120 |
2.520 |
100.8 |
| 16 ga. (.060") x 60 x 120 |
2.520 |
126.0 |
| 18 ga. (.048") x 36 x 120 |
2.016 |
60.48 |
| 18 ga. (.048") x 48 x 120 |
2.016 |
80.64 |
| 20 ga. (.036") x 36 x 120 |
1.512 |
45.36 |
| 20 ga. (.036") x 48 x 120 |
1.512 |
60.48 |
| 22 ga. (.030") x 36 x 120 |
1.260 |
37.80 |
| 22 ga. (.030") x 48 x 96 |
1.260 |
40.32 |
| 22 ga. (.030") x 48 x 120 |
1.260 |
50.40 |
| 24 ga. (.024") x 36 x 120 |
1.008 |
30.24 |
| 24 ga. (.024") x 48 x 120 |
1.008 |
40.32 |
| 26 ga. (.018") x 36 x 120 |
.7560 |
22.68 |
| 26 ga. (.018") x 48 x 120 |
.7560 |
30.24 |
| 28 ga. (.015") x 36 x 120 |
.6300 |
18.90 |
Chemical Composition of Cupro Nickel 90 / 10 Sheets and Plates
| Grade |
Cu |
Mn |
Pb |
Ni |
Fe |
Zn |
| Cu-Ni 90-10 |
88.6 min |
1.0 max |
.05 max |
9-11 max |
1.8 max |
1 max |
Mechanical Properties of Copper Nickel 90/10 Sheets and Plates
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 0.323 lb/in3 at 68 F |
2260 F |
50000 psi |
20000 psi |
30 % |
Cupro Nickel 90 / 10 Sheets and Plates Application Industries
- Chemical Industry
- Petrochemical industry
- Marine & Power Transmission industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
